The Piper 1v2 build is at the stage where the electronics need assembled
The Assembly steps would be the same for just about any 3d printer build
Required parts for Ramps 1.5 electronics Build
1 – Ramps 1.5 board 15 – jumpers for Ramps 1.5 board 1 – Mega2560 5 – A4988 Green Stepper Controllers 5 – heat sinks for A4988 Green Stepper Controllers 1 – RepRap Discount Smart Graphics Controller

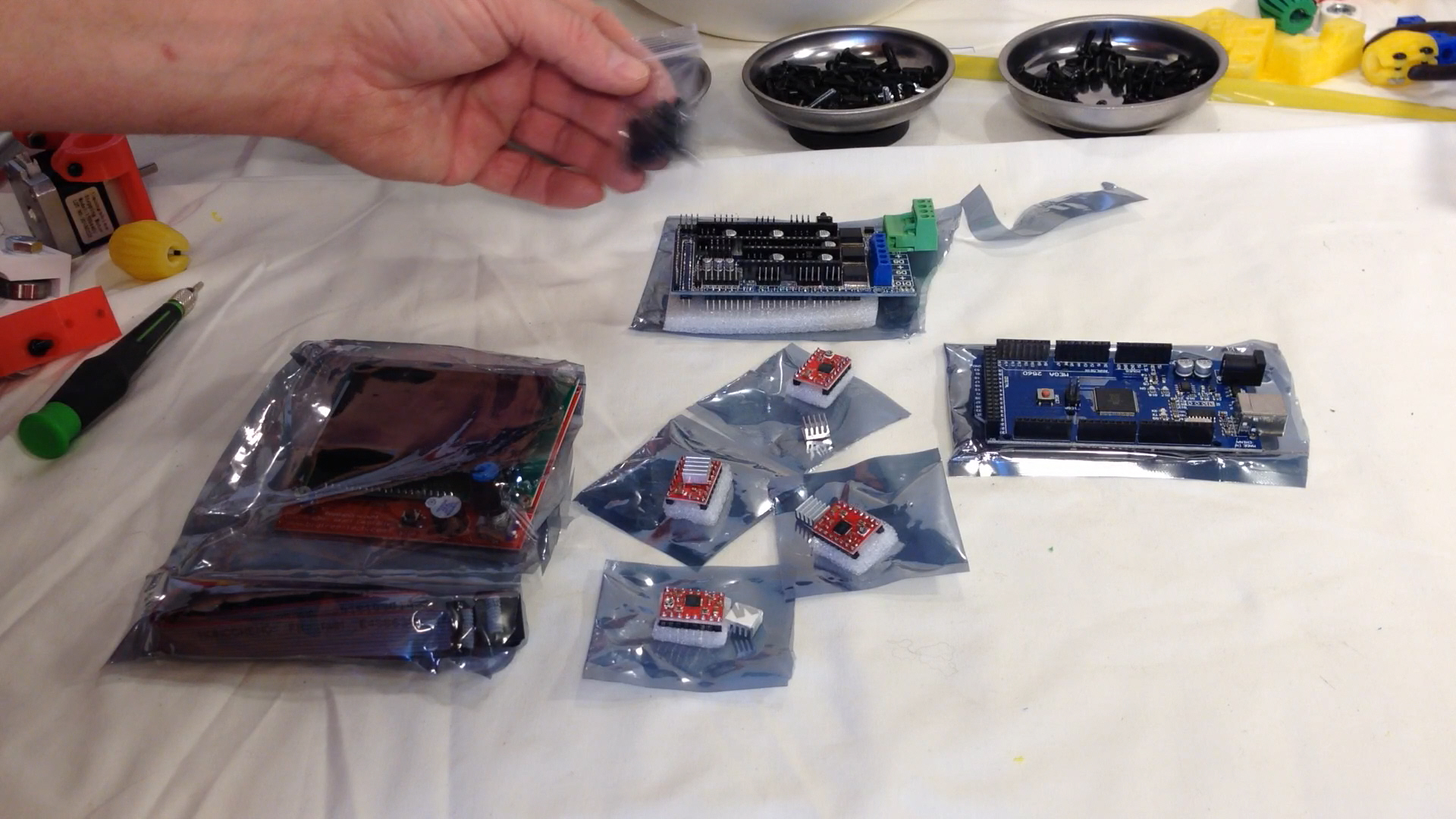

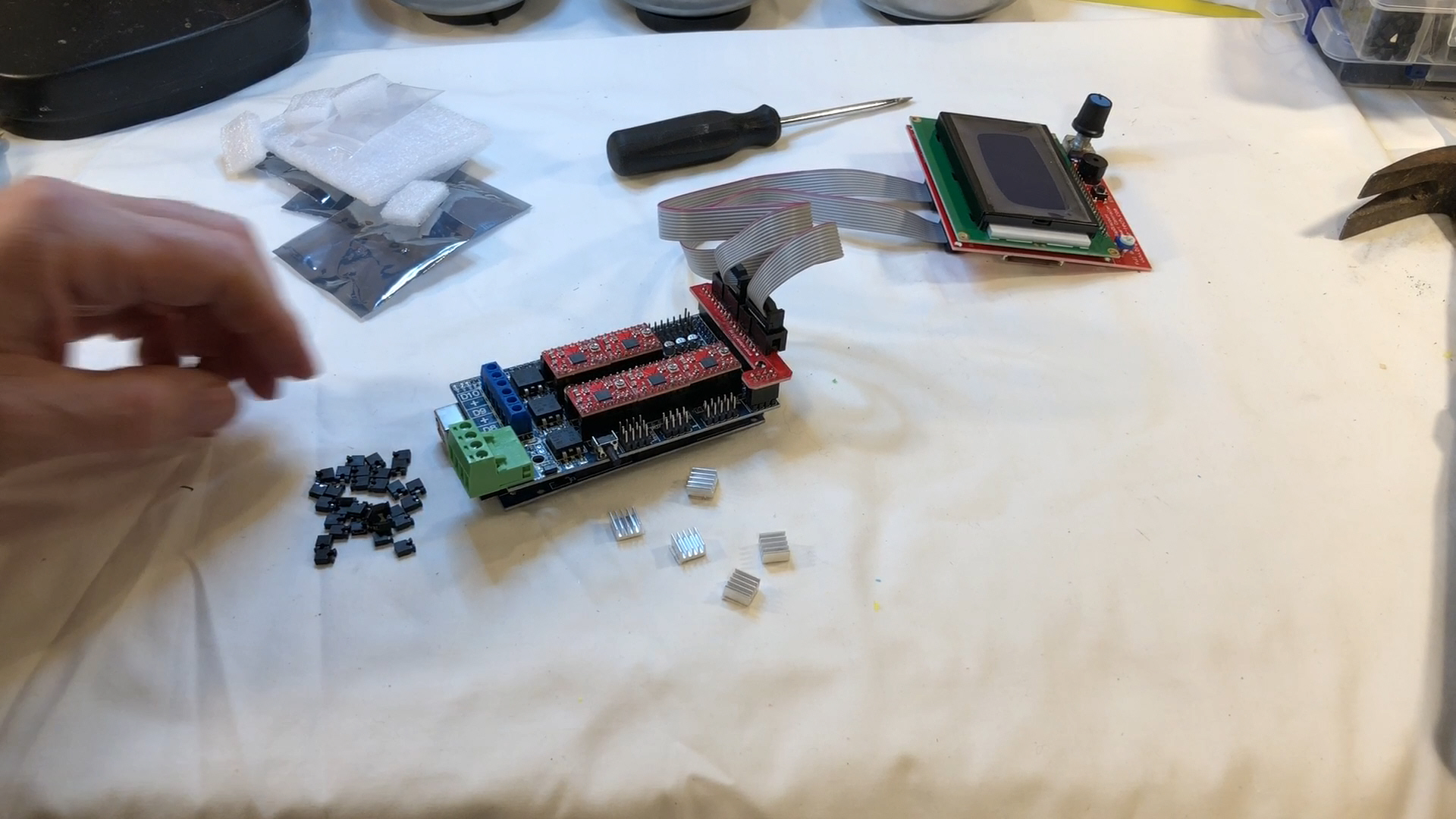

All the Required Parts
Before starting this assembly, I programmed the Mega2560 with Marlin 1.1.19

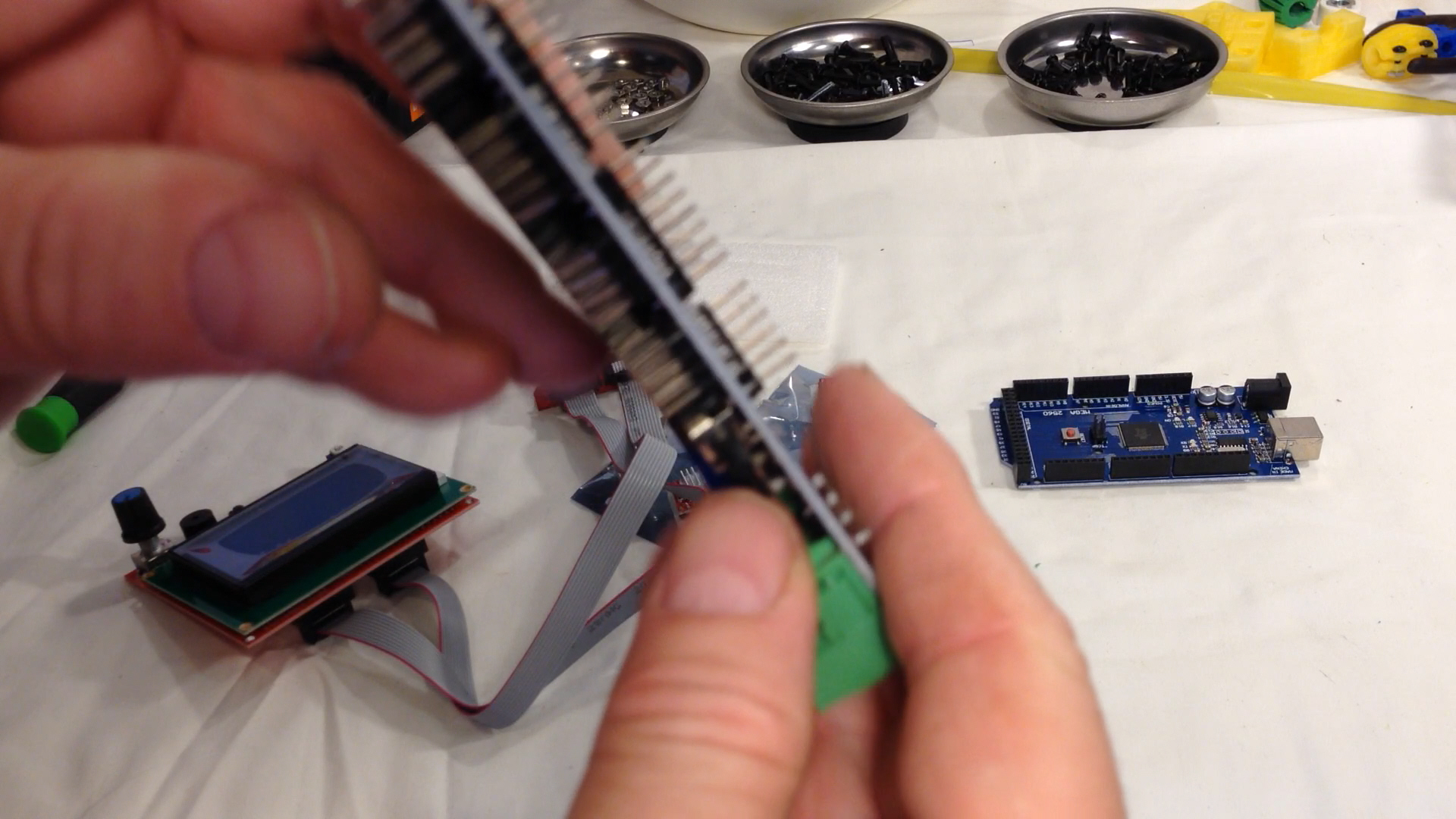

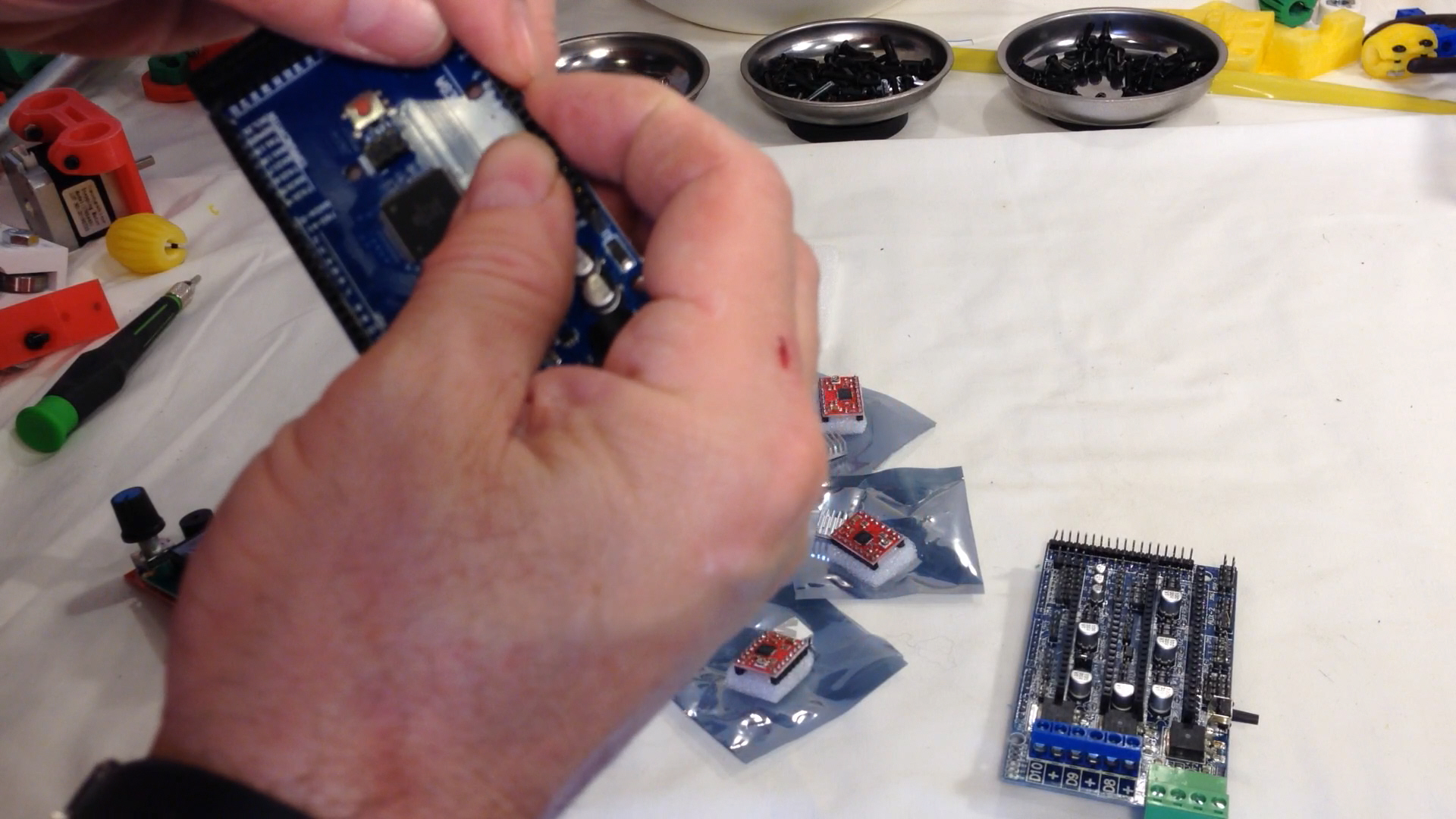

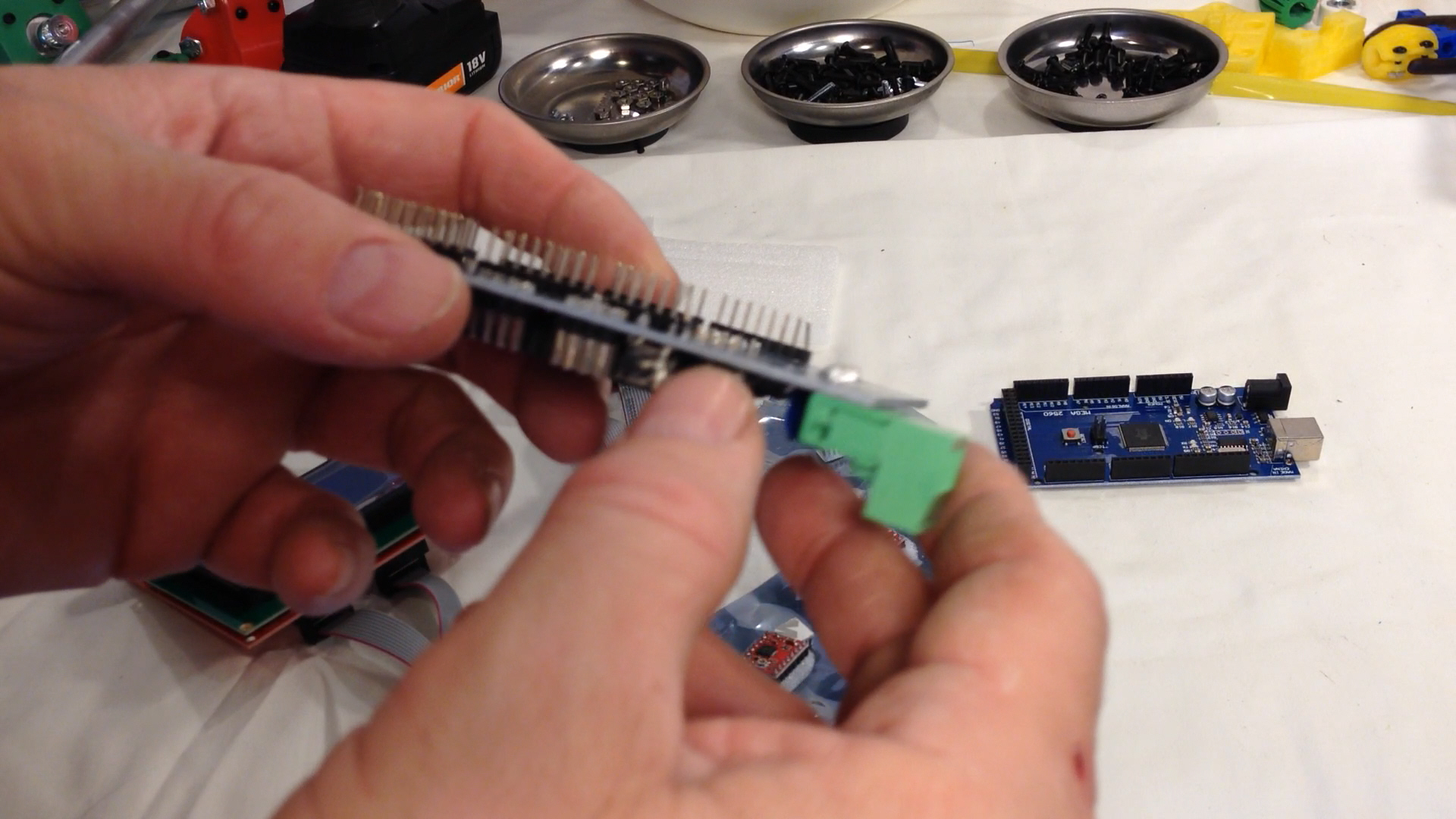

All header pins should be inspected to ensure they were not bent in shipping – very common issue!
If any pins are bent GENTLY straighten the pins

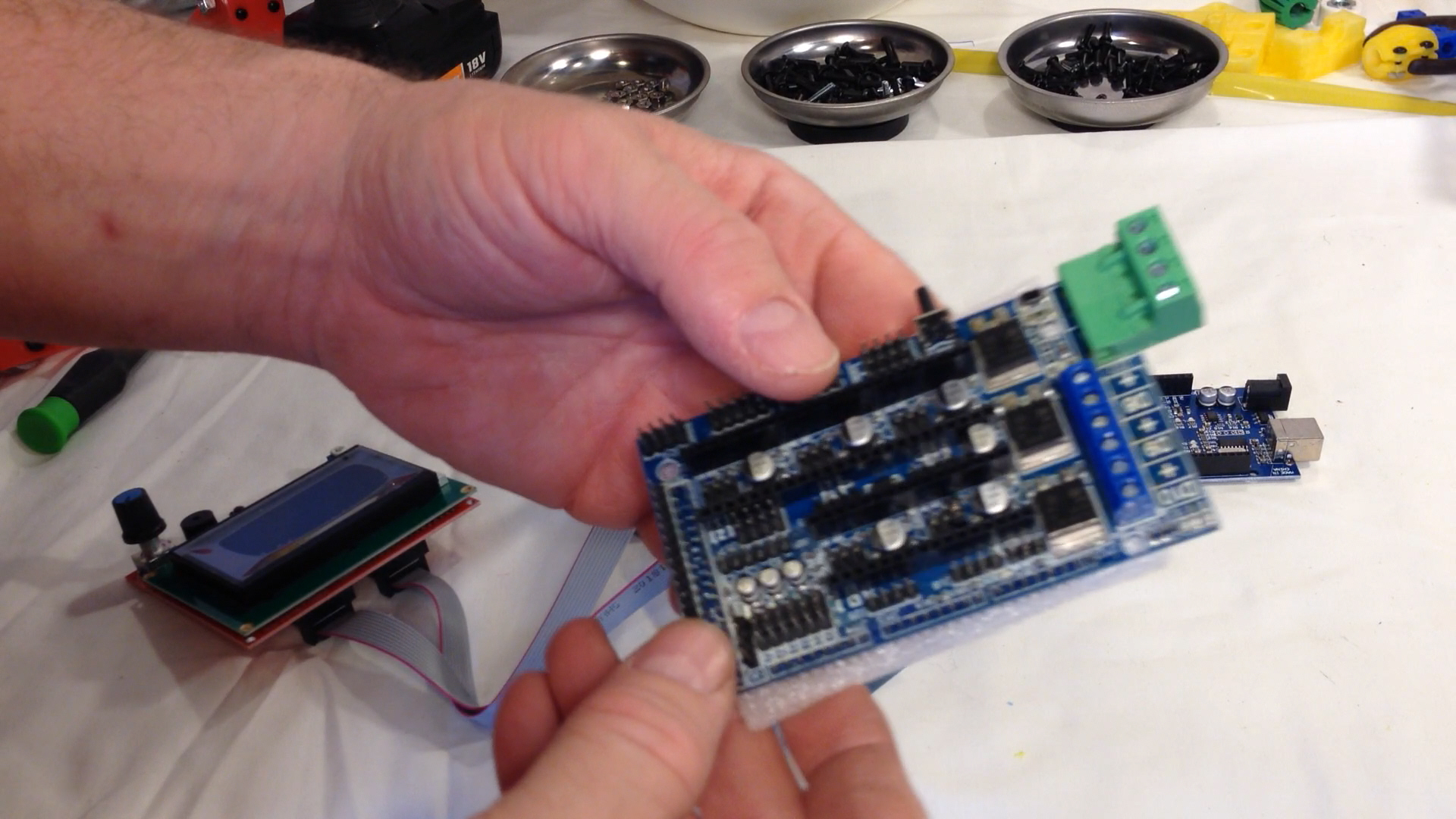

It is very common for headers to be misaligned so the pins on the Ramps 1.5 shield do not line up
If any pins are bent GENTLY straighten the headers

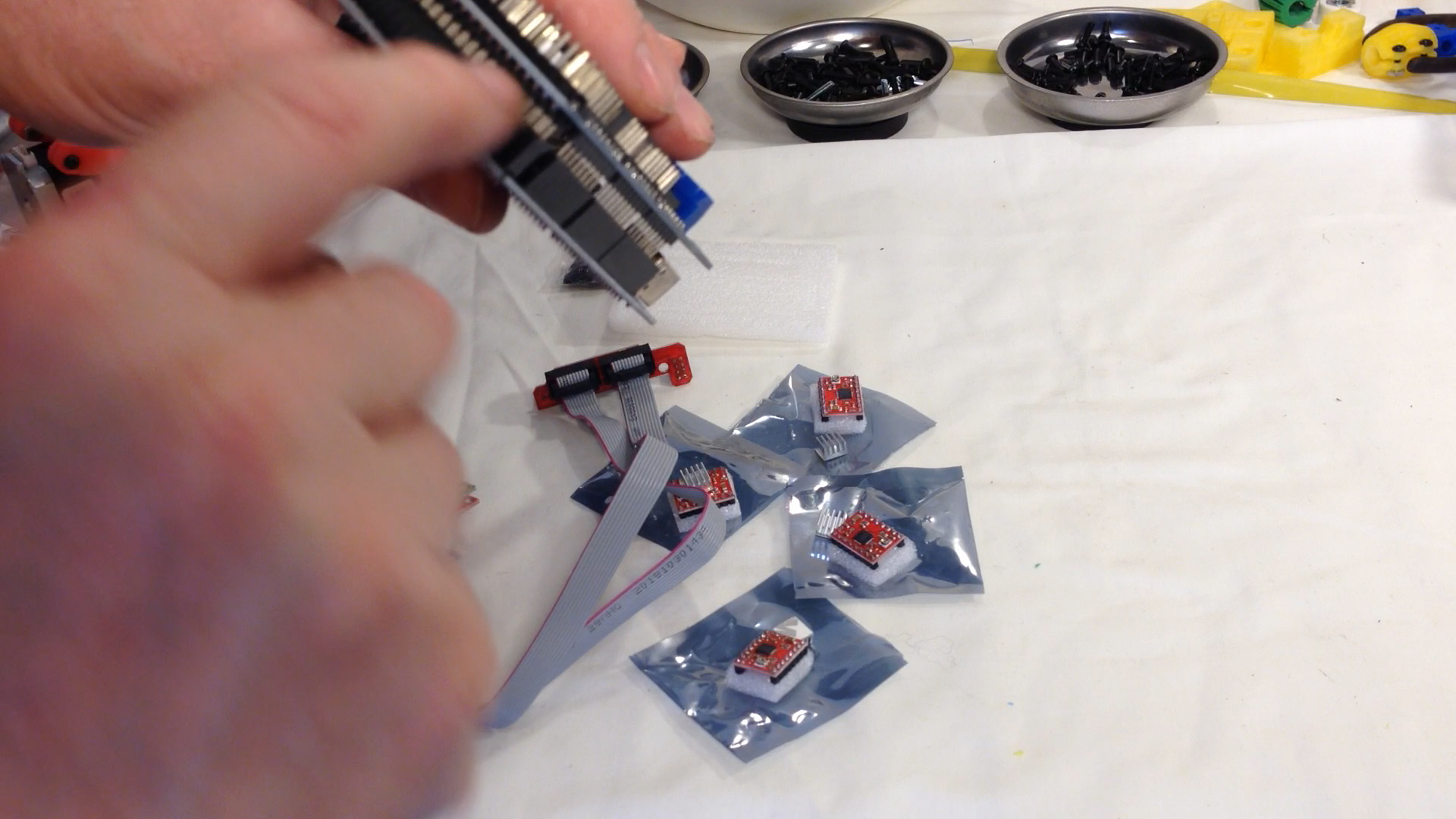

Line up the Header Pins on the Ramps 1.5 shield with the headers on the Mega2560

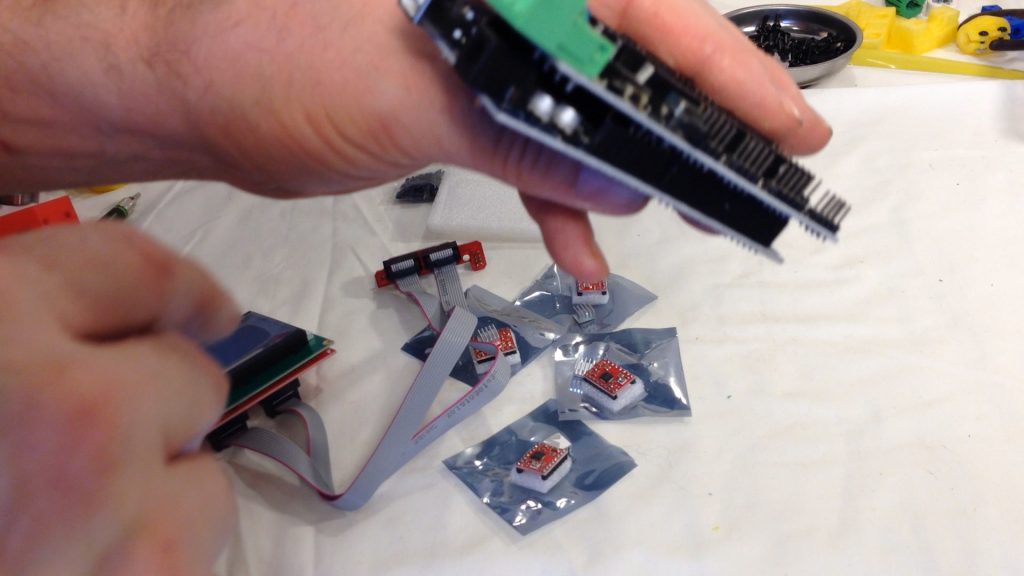

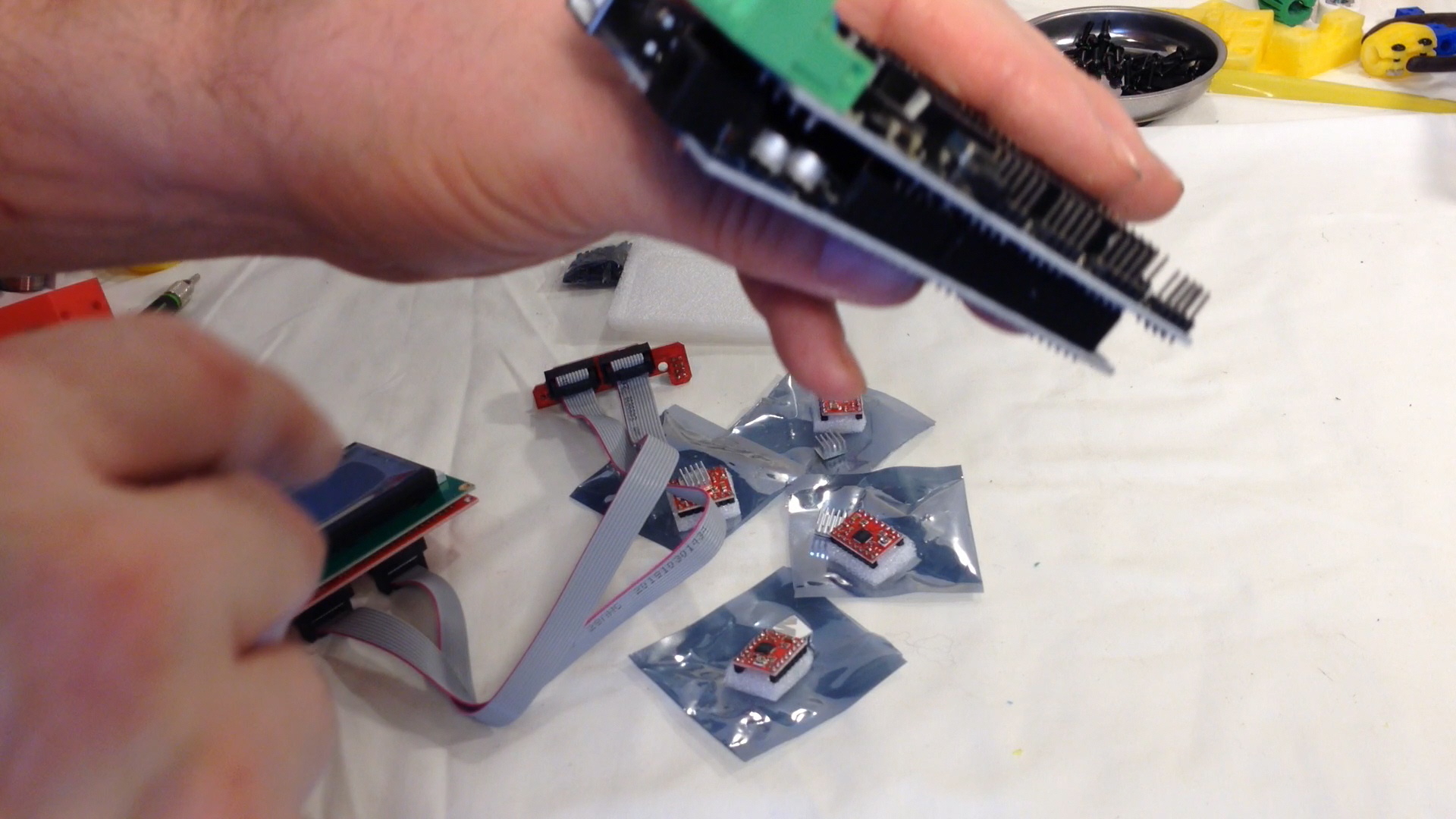

Gently insert the Ramps 1.5 shield into the Mega 2560 Headers
I am using A4988 (green) Stepper Drivers for the Ramps 1.5 Shield, also available are A4988 (red) and DRV8825(Purple) Stepper Drivers
The stepper drivers need installed on the Ramps 1.5 Shield, verify the pins are all straight, and headers are all straight

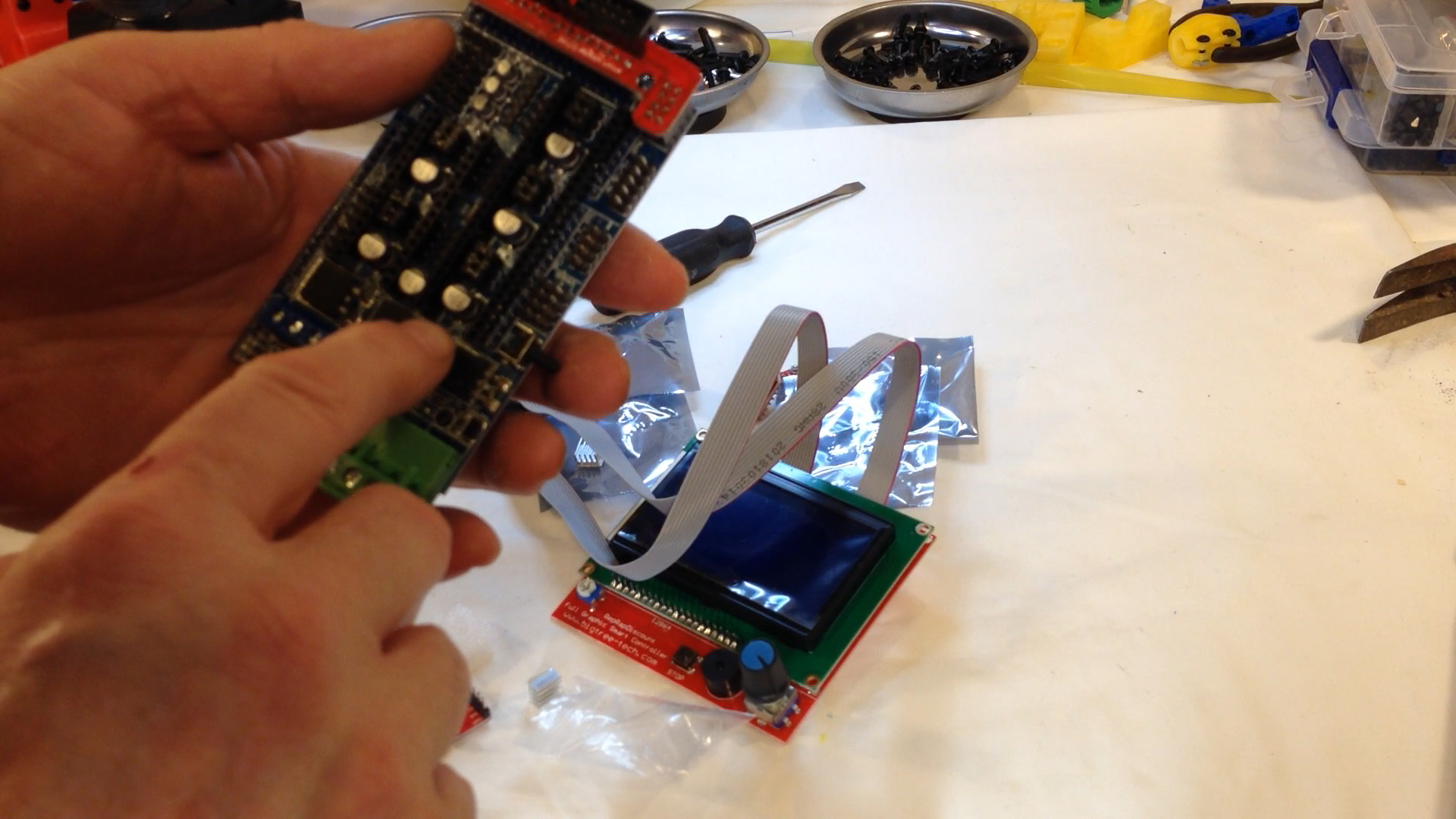

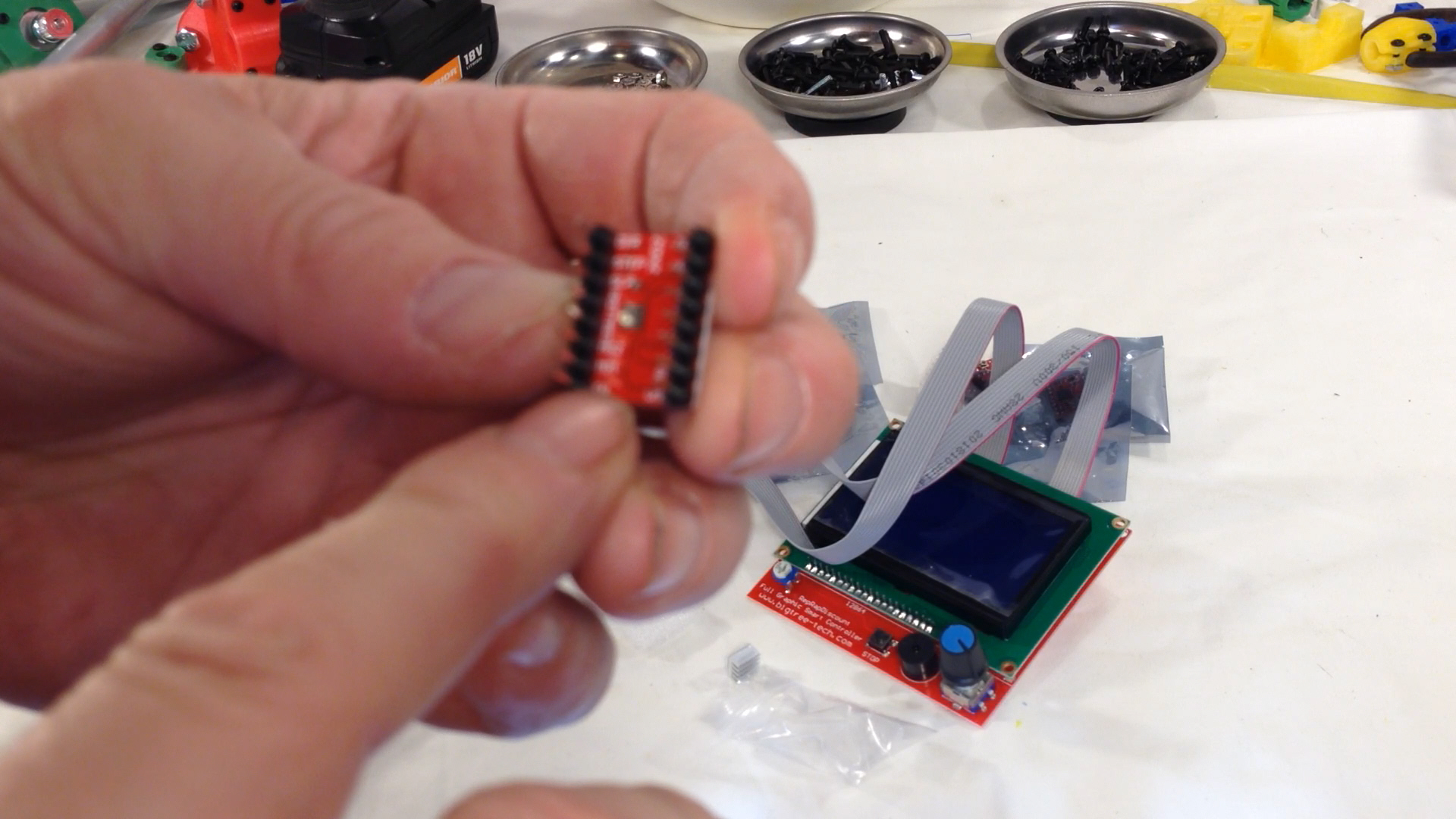

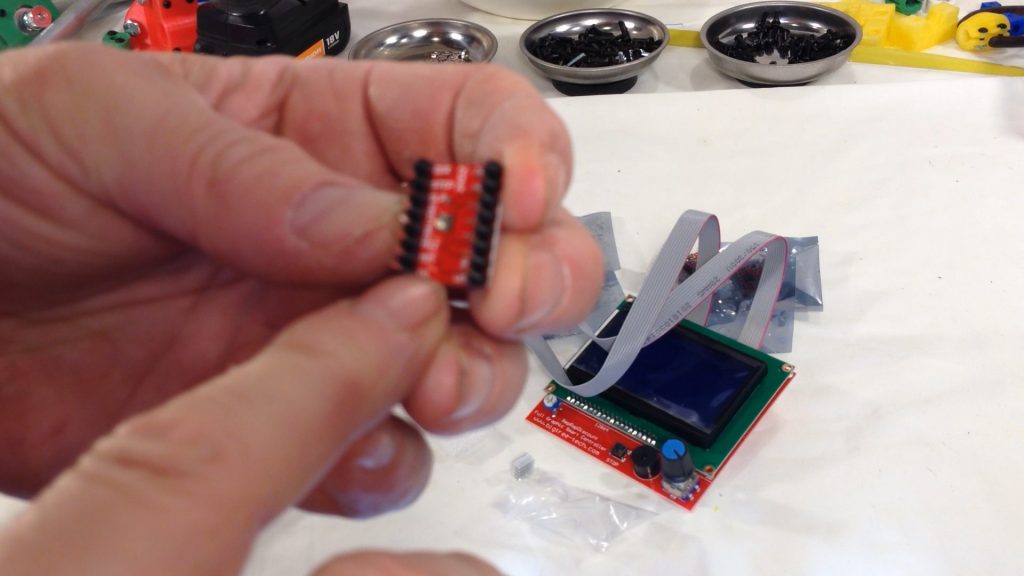

Determine the orientation of the stepper drivers by verify the location of the ENABLE (EN) pin on the stepper driver and the Ramps 1.5 header
If the Stepper Driver is not installed correctly, the Stepper Driver will be ruined when power is applied, so lining up the EN Header/Pin is extremely Important – Install all 5 Stepper Drivers, they should all be installed in the same orientation

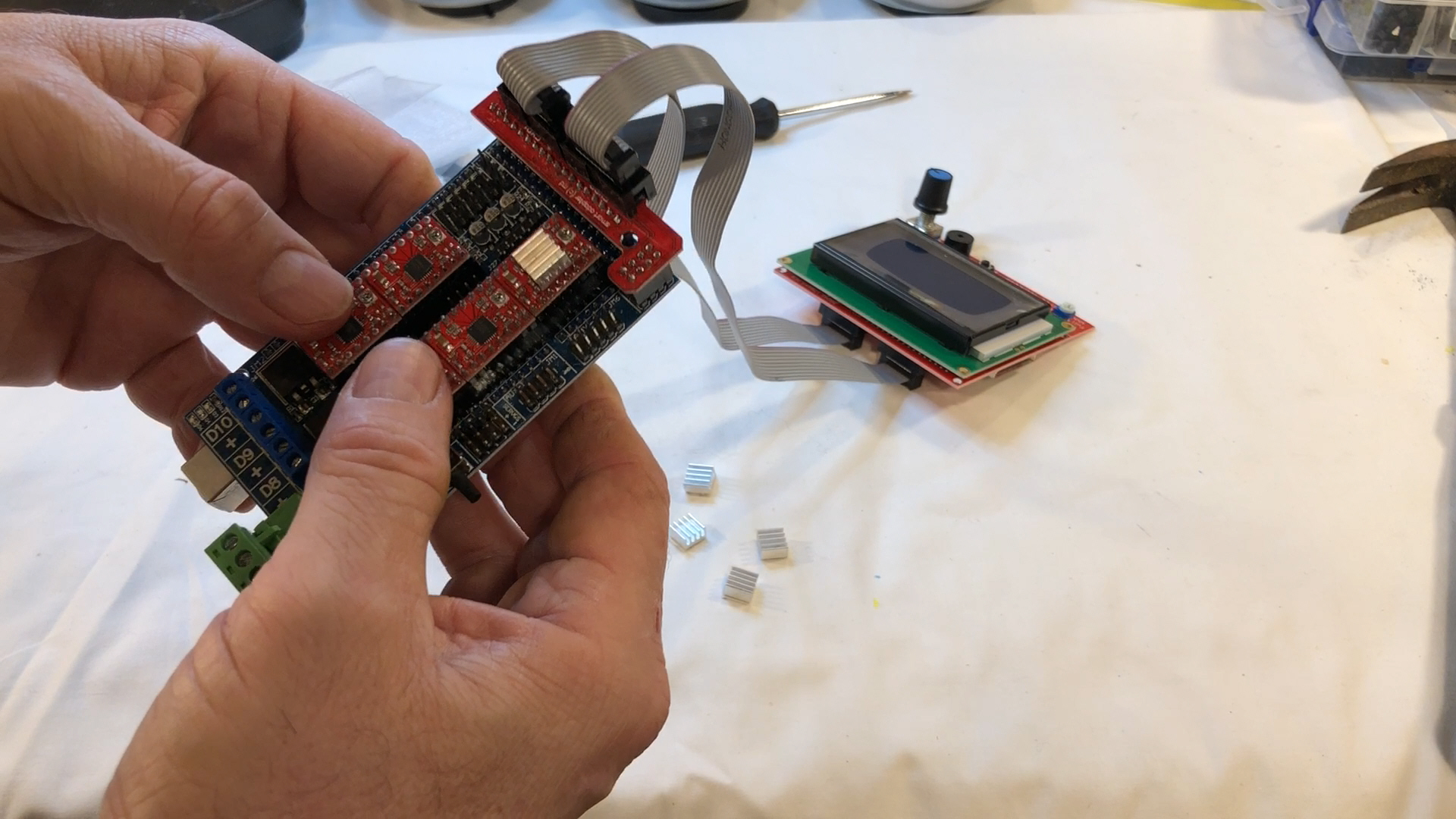

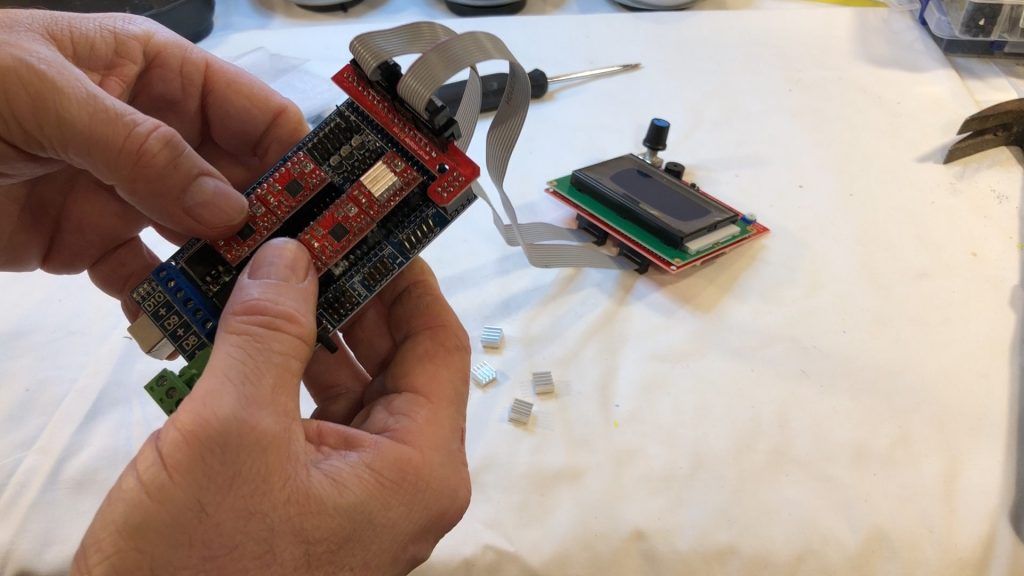

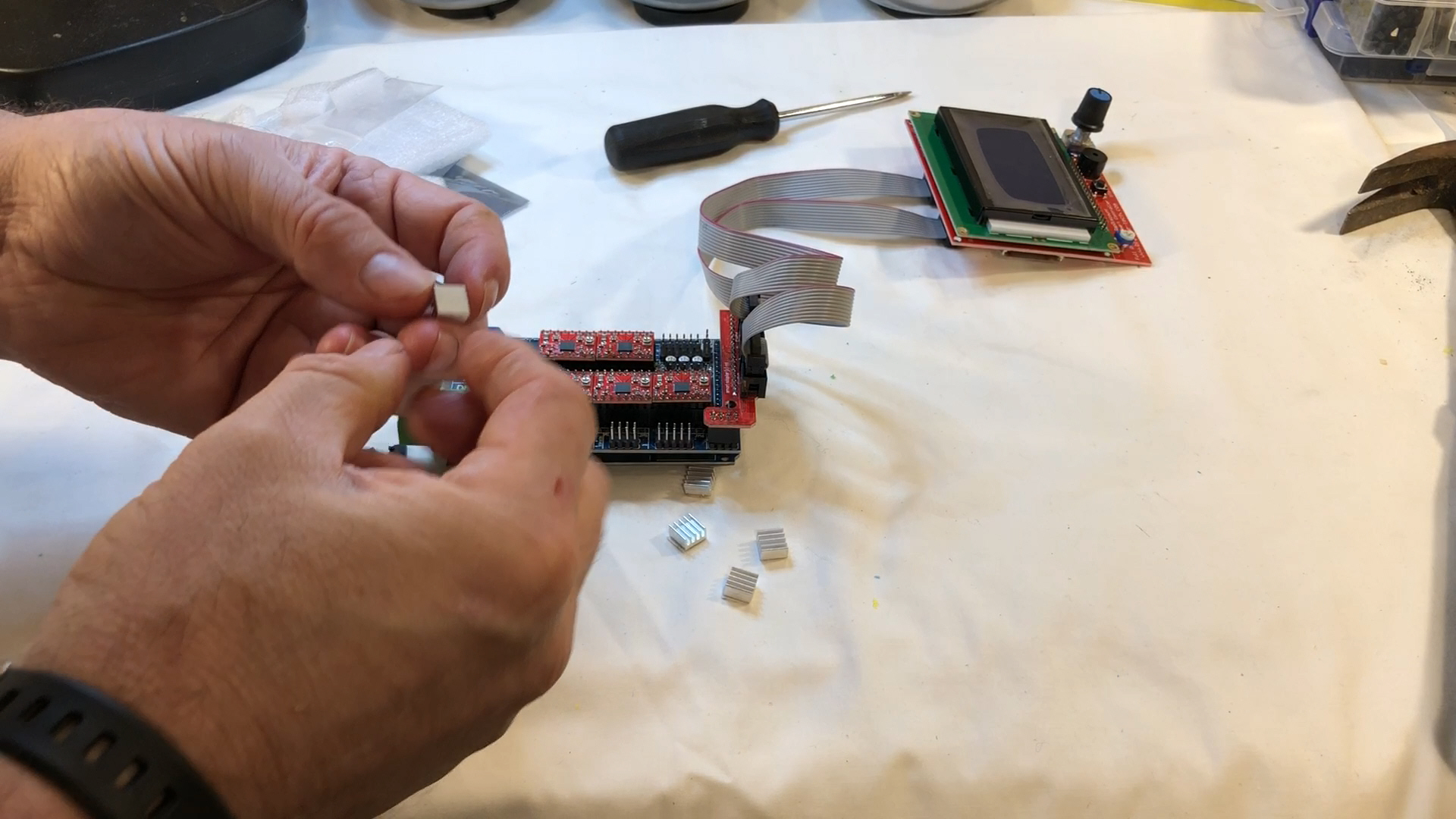

The Stepper Controllers get hot when in use, so they normally come with a heatsink, Peel the paper off the bottom to expose the adhesive
And install on the largest chip on the Stepper Driver
I am using the RepRap Smart Graphics Controller 12864
If you are using the 2004 Graphics Controller
The Smart Graphics Controller comes with 2 ribbon cables and a Ramps Adapter

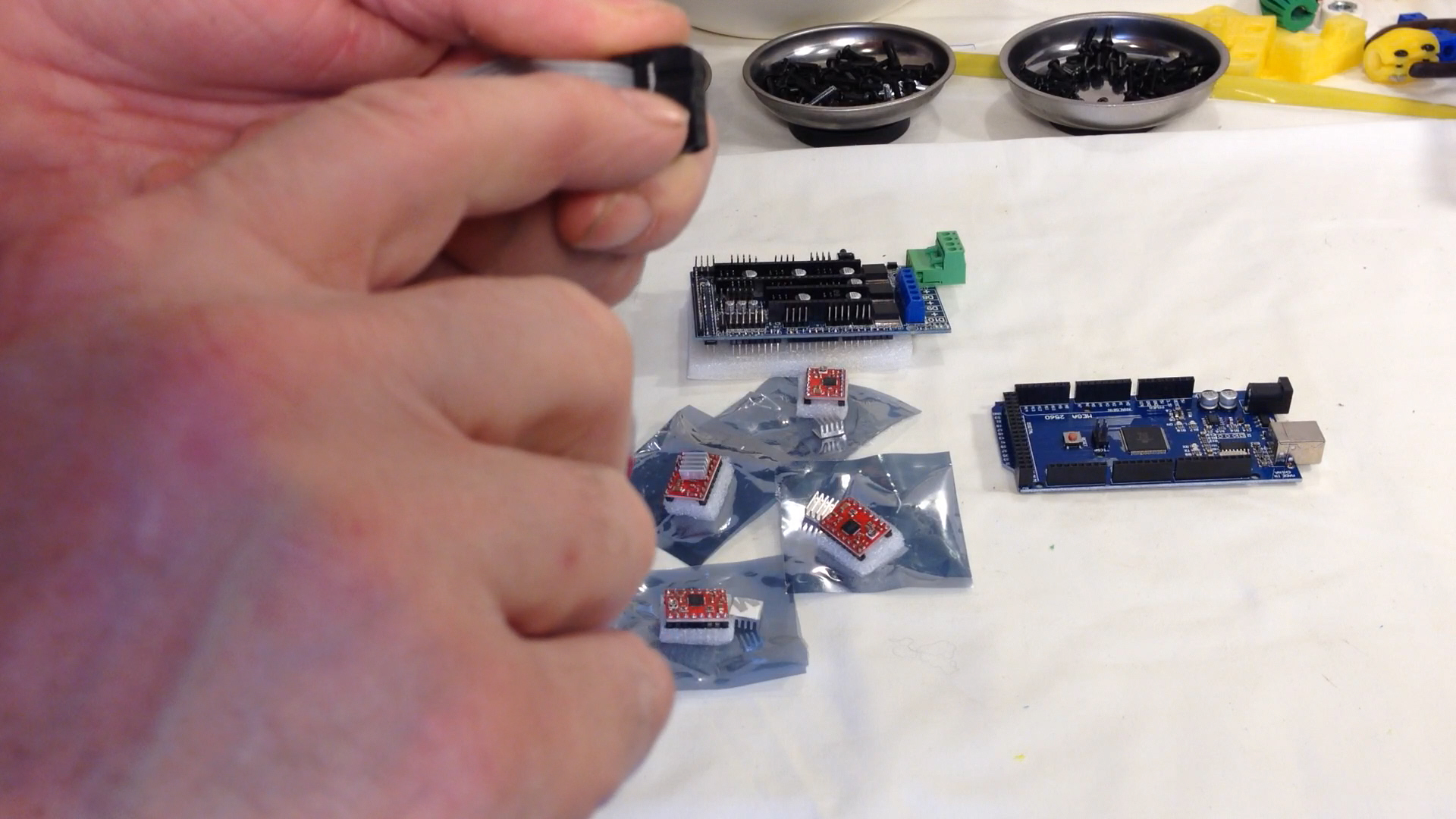

The ribbon cables are keyed, as are the headers, so the ribbon cables can only be inserted one way

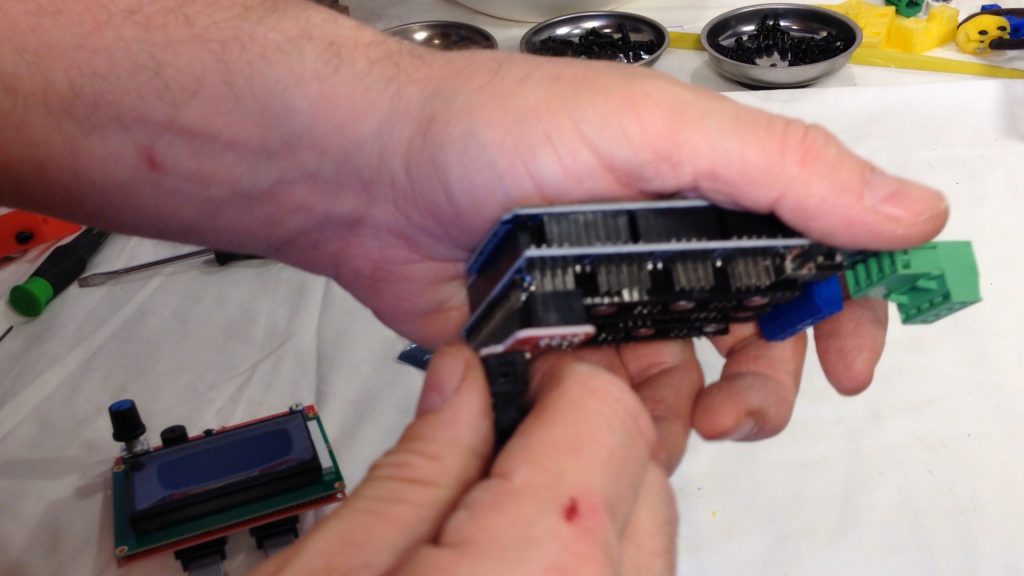

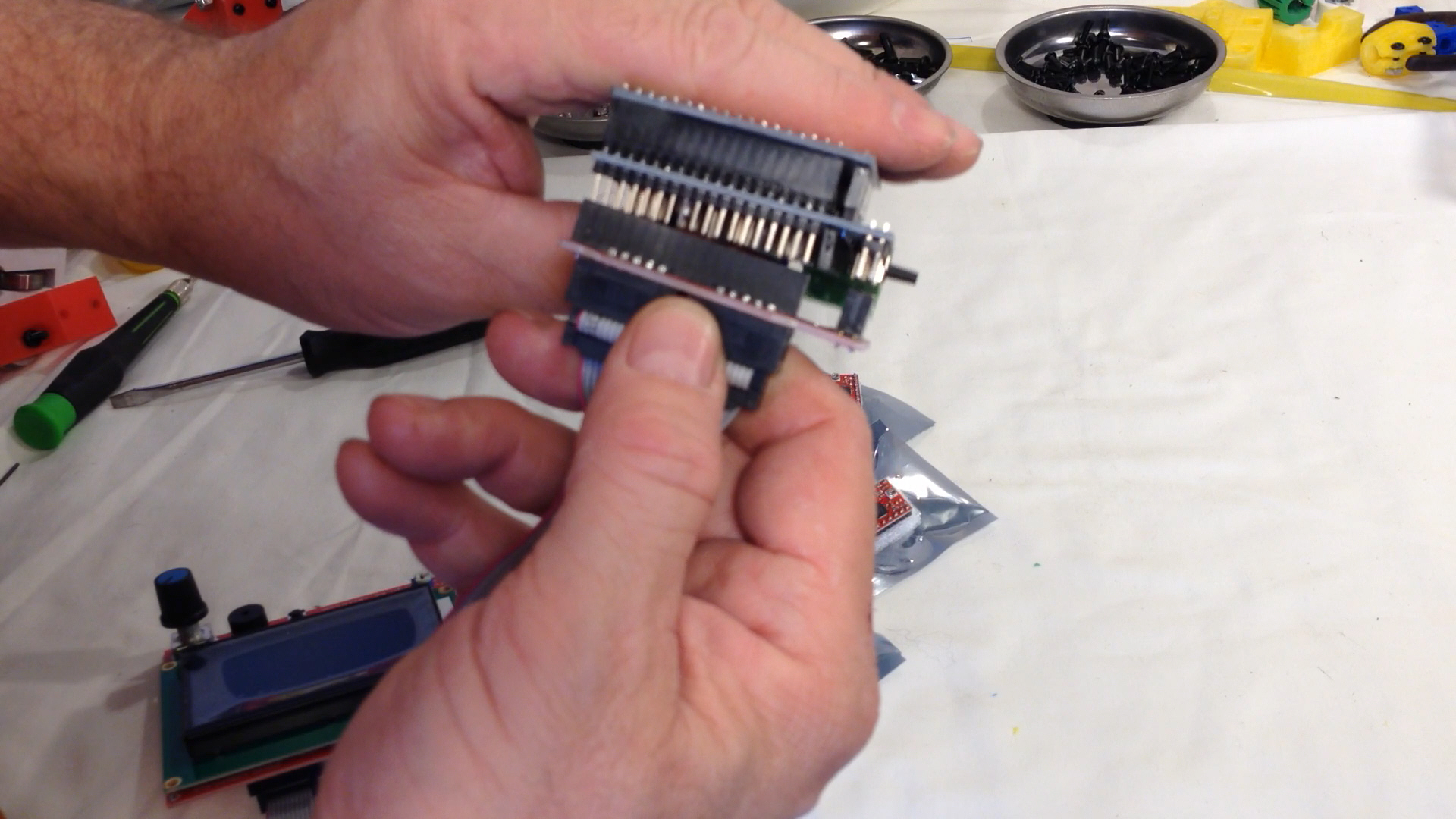

Insert the Ramps/Graphics Adapter on the Ramps 1.5 Shield, the Adapter is L shaped, and has a single row of headers on the long side of the L, and a double row of headers on the short side of the L
Gently insert the Graphics Adapter on the Ramps 1.5 Shield, being careful line up the pins

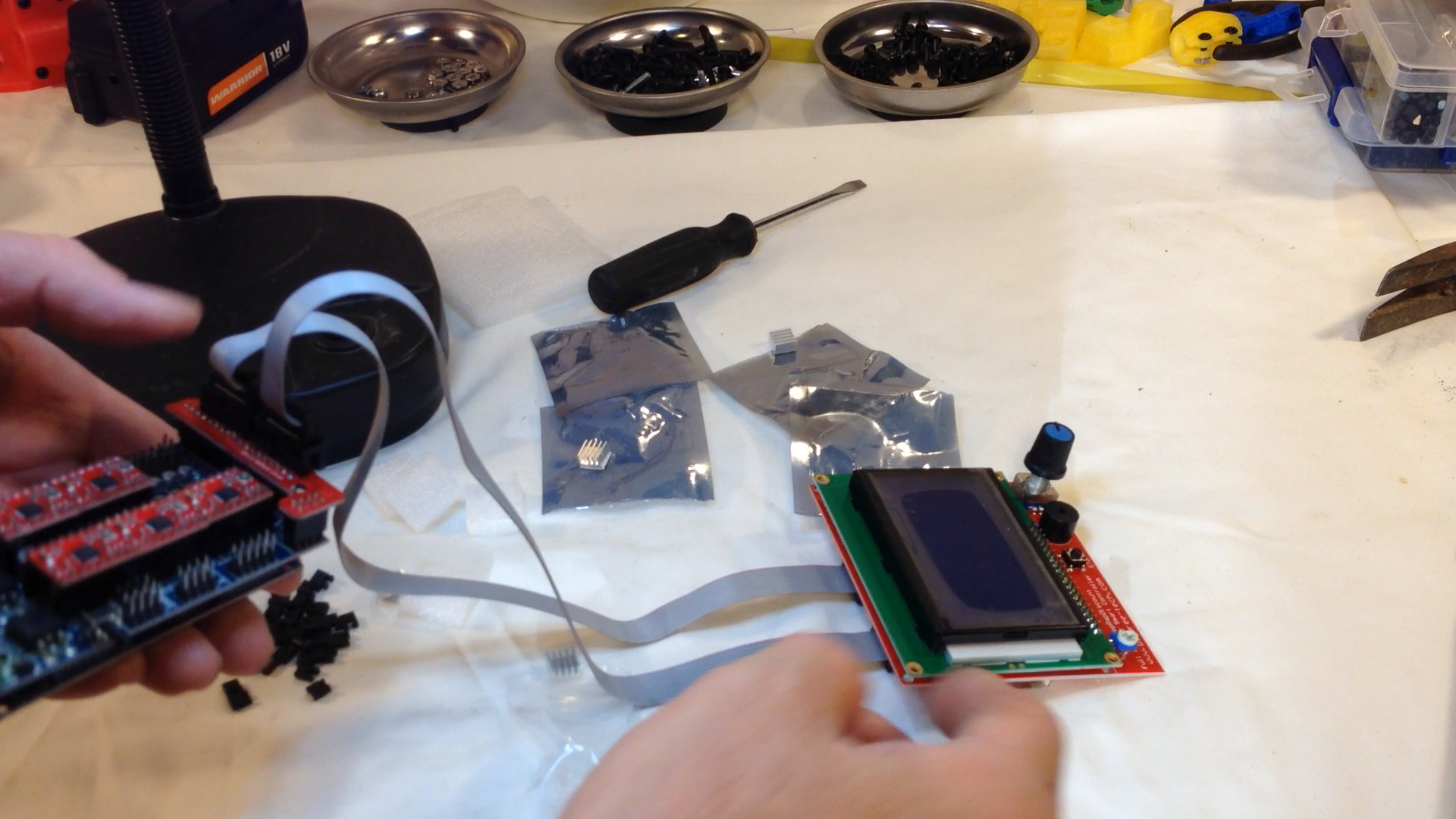

Install the ribbon cables on the Graphics Adapter, using the keys to get the right orientation of the cables
Its best the lay out the cables in parallel to the Smart Graphics Controller, keeping them side by side (not crossed) and connect them to the Smart Graphics Controller
At this stage, you can test the setup by connecting the USB cable to the Mega2560, if have already installed Marlin, you will see a live screen

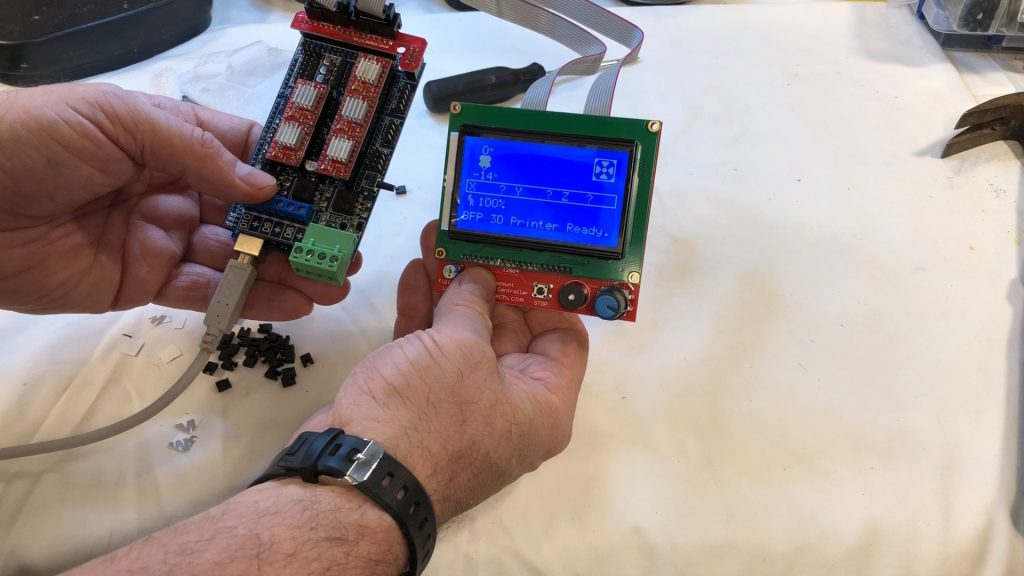

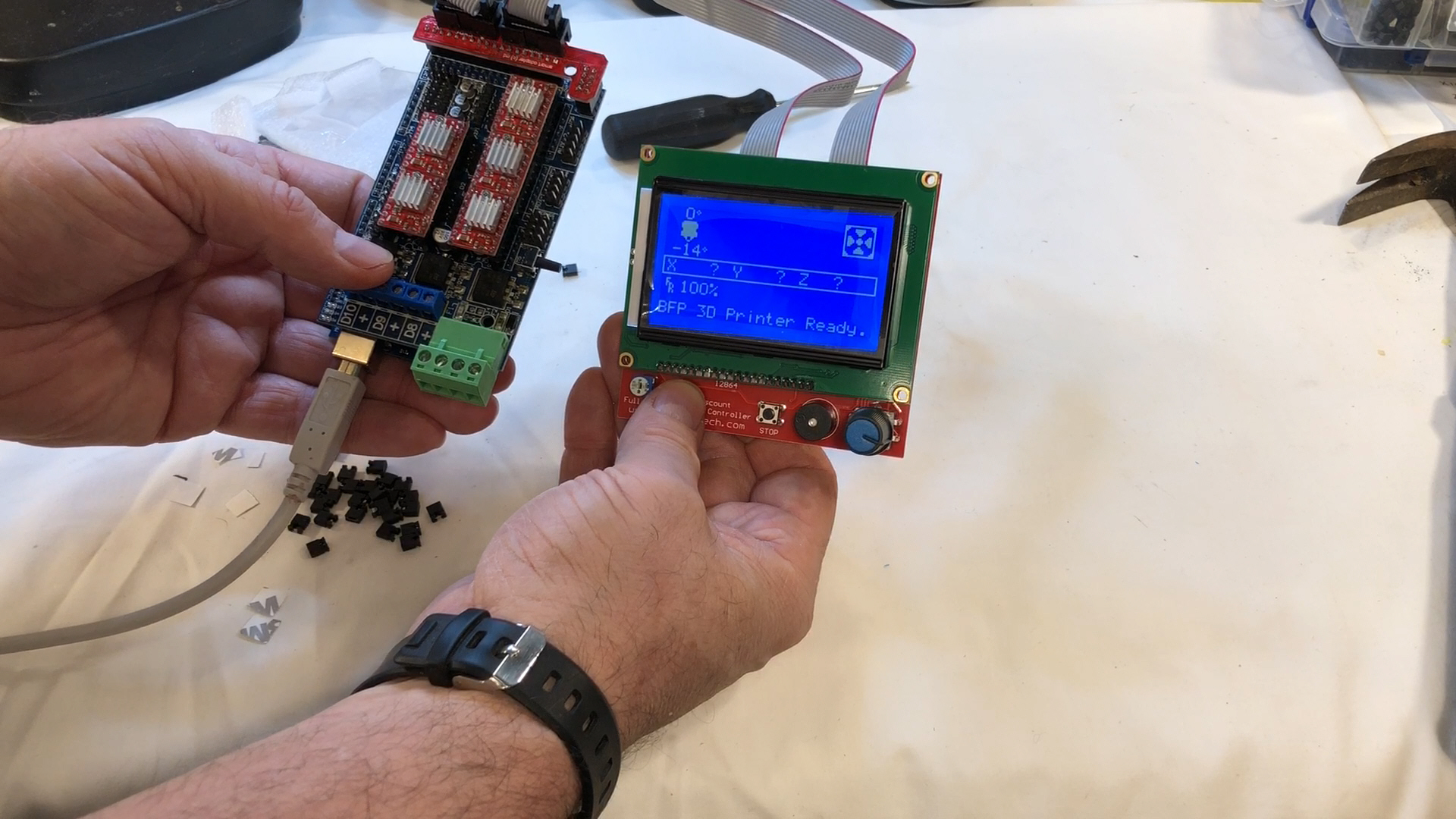

If you get a Marlin display on the Smart Graphics Controller, you have validated the Mega2560, Ramps 1.5 and Smart Graphics Controller
This does NOT validate the Stepper Drivers
Video of the Piper Ramps 1.5 assembly process
