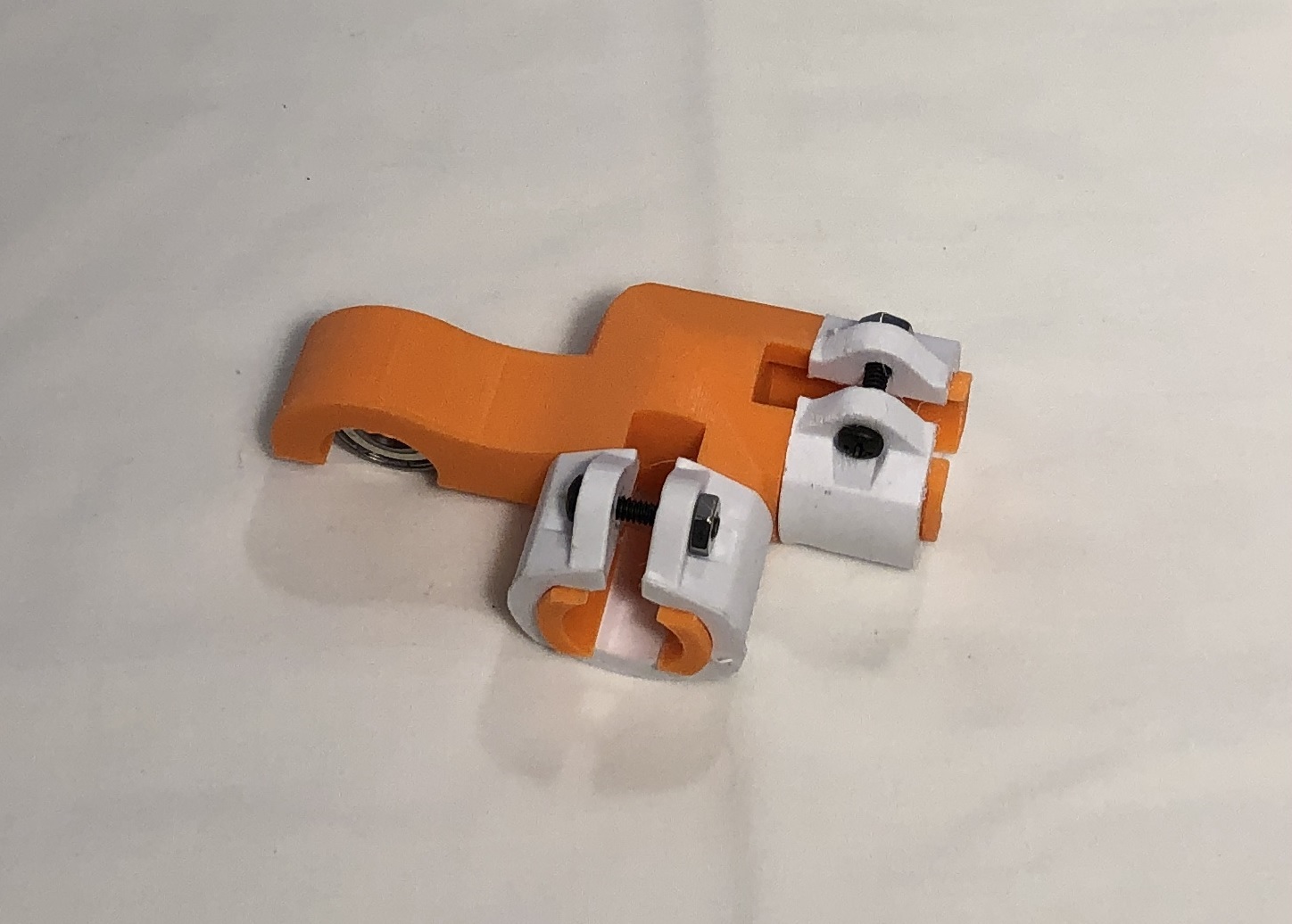

Piper 1v2 3D Printer Top Right Corner Z Support Parts Assembly

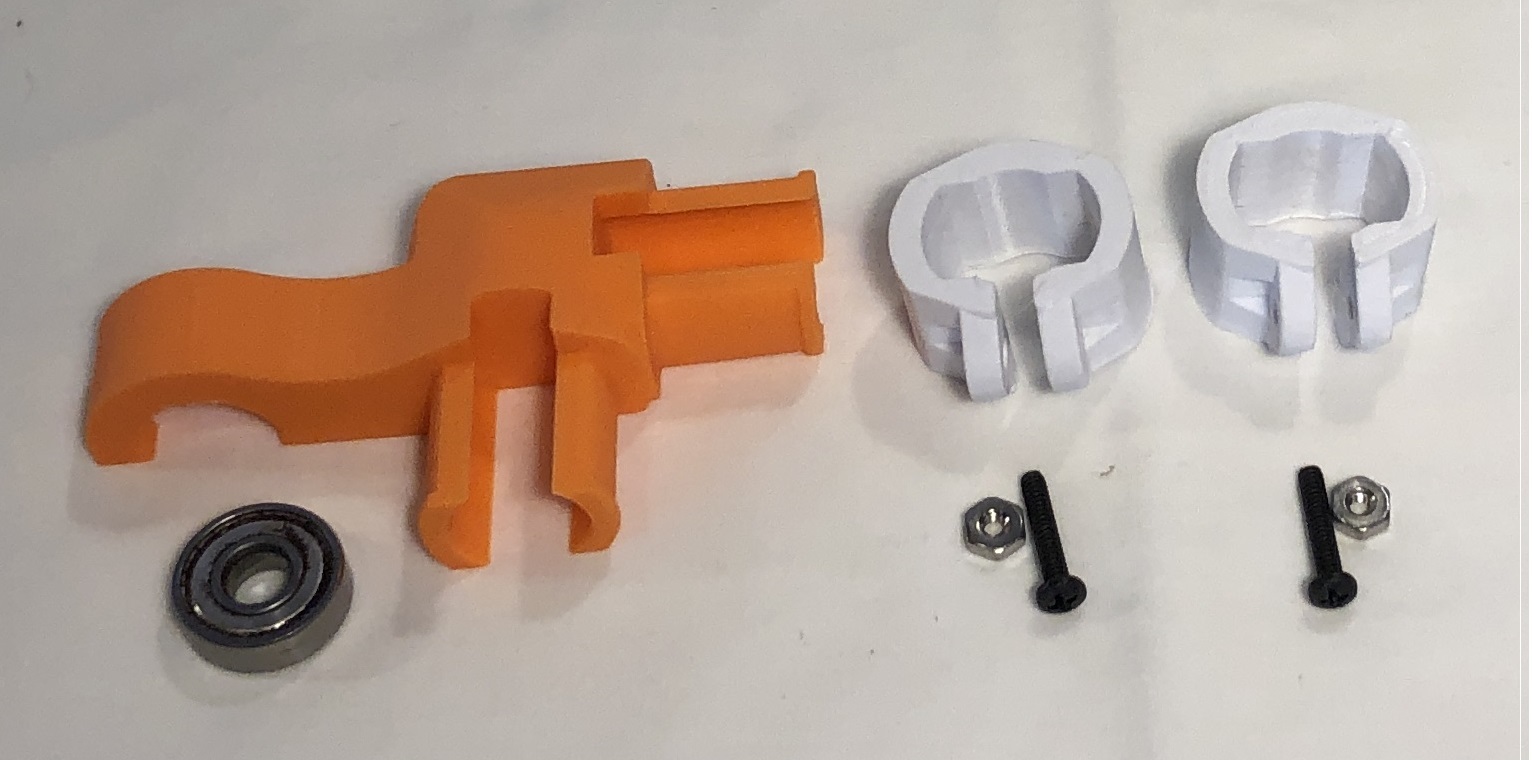

All Parts needed to assemble the Right Z Roller
– 1 – Z_Roller_Right.v2.1.stl
– 5 – 608zz bearings
– 4 – 1 inch x 5/16 Hex Bolt with Nut
– 1 – 1.5 Inch x 5/16 Hex Bolt with Nut
– Optional – using 3/8 lead screw
– 1 – Zbolt_fix_3-8.stl
– 1 – Z_Coupling_3-8.stl
– Optional – using 5/16 lead screw
– 1 – Zbolt_fix_5-16.stl
– 1 – Z_Coupling_5-16.stl
– Optional – using T8 Leadscrew
– Lead screw should come with nut
Video of Right Z Roller Assembly
