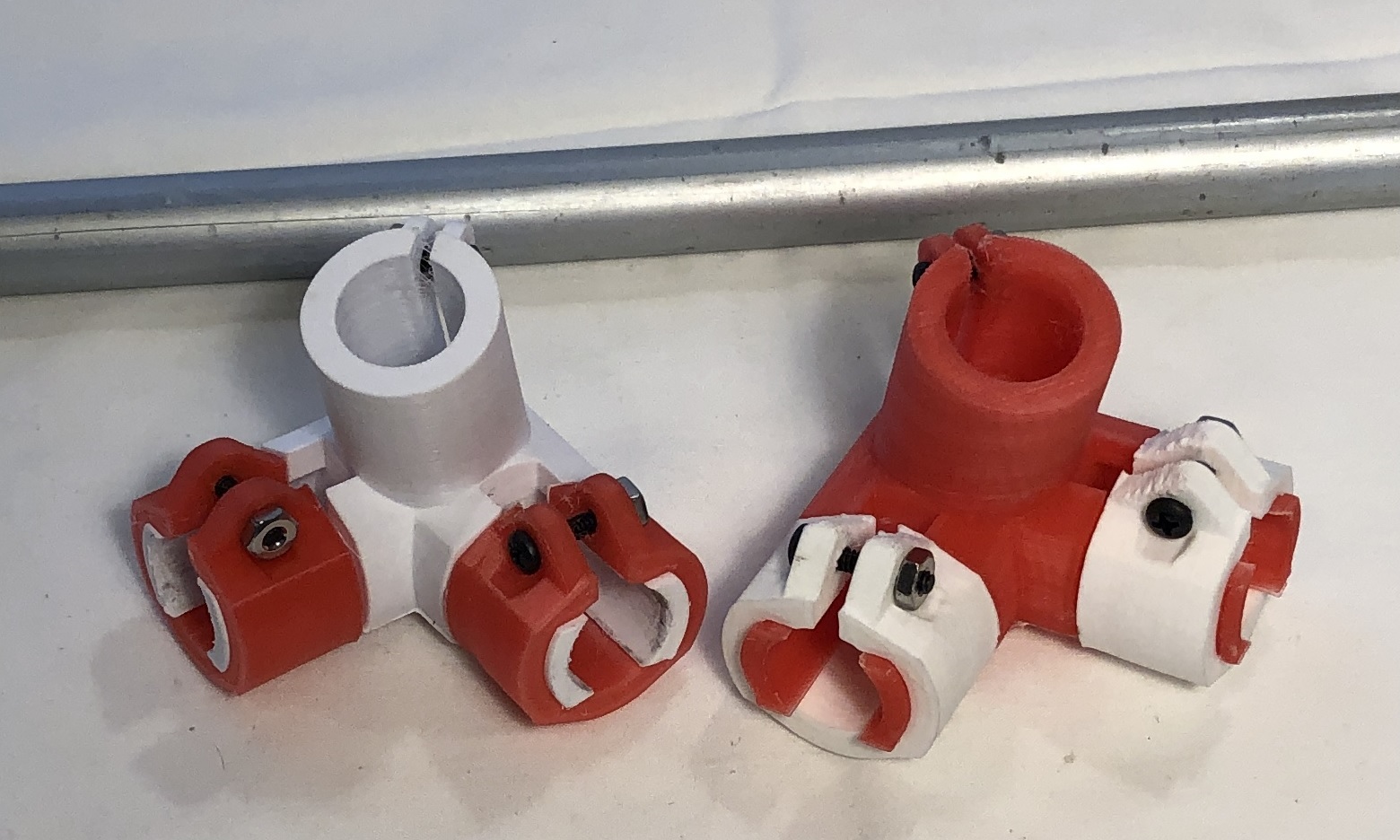

Piper 1v2 3D Printer Rear Corner Parts Assembly

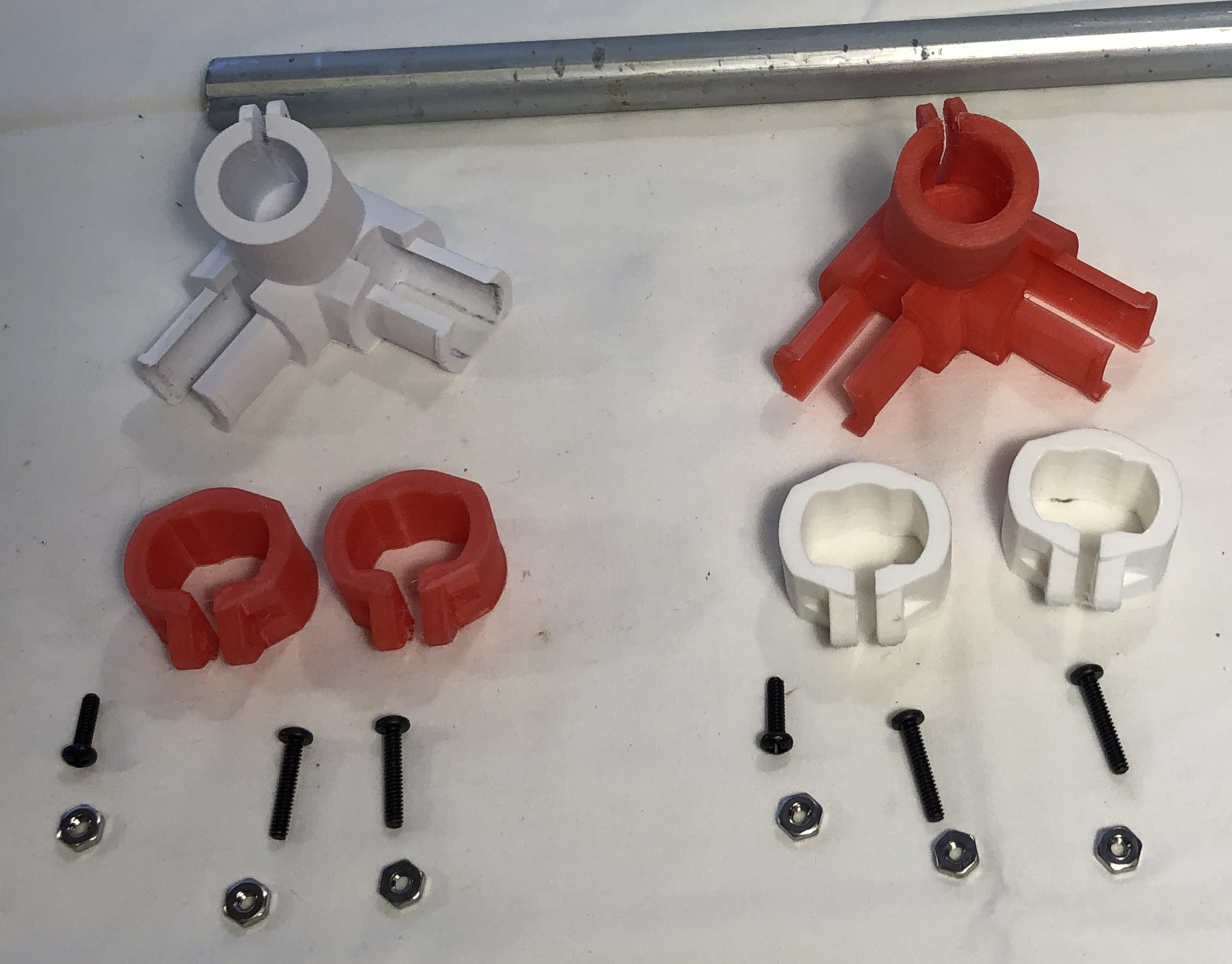

All Parts needed to assemble the Right Back Corners
– 1 – 3xcorner_Right.v2.stl (deceptive part description – you only need 1)
– 2 – joint_bracket.v2.stl
– 2 – 6-32×3/4 machine screw with Nut
– 1 – 6-32×1/2 machine screw with Nut
All Parts needed to assemble the Left Back Corners
– 1 – 3xcorner_Left.v2.stl (deceptive part description – you only need 1)
– 2 – joint_bracket.v2.stl
– 2 – 6-32×3/4 machine screw with Nut
– 1 – 6-32×1/2 machine screw with Nut
Video of Rear Corner Assembly
